Super-Mesa / Backdraught Table 1m & 1.4m

The Fumex Ltd Super-Mesa is a modern backdraught table with built-in regulating damper. It is designed for welding and grinding, plus can also be used in many other applications where dust, fume/gases are a problem.

The extraction is through the backdraught panel, it´s vertical funnel-shaped extraction openings guarantee maximum efficiency. Super-Mesa is equipped with a regulating damper which makes it possible to adjust the width of the vertical openings of the backdraught panel.

If an extraction arm is fitted (optional extra) you can easily adjust the total air volume between the arm and the backdraught panel with a handle on the front side. For heavy welding the Super-Mesa can be equipped with a Flexi Arm 1.5m. If it is needed to reach outside the table area, you can mount a 2m or a 3m Flexi Arm.

The Super-Mesa is manufactured in 2mm and 3mm steel sheet. The table height can be adjusted from 800-950mm. The side panels can be opened for long objects. Suitable air volume for 1m table is 1300-1700m3/h and for 1.4m table 1500-2200m3/h.

If the table is used for both welding and grinding it should be ducted to a centralised filter unit, or if used for welding only it can be ducted via a centrifugal fan to atmosphere.

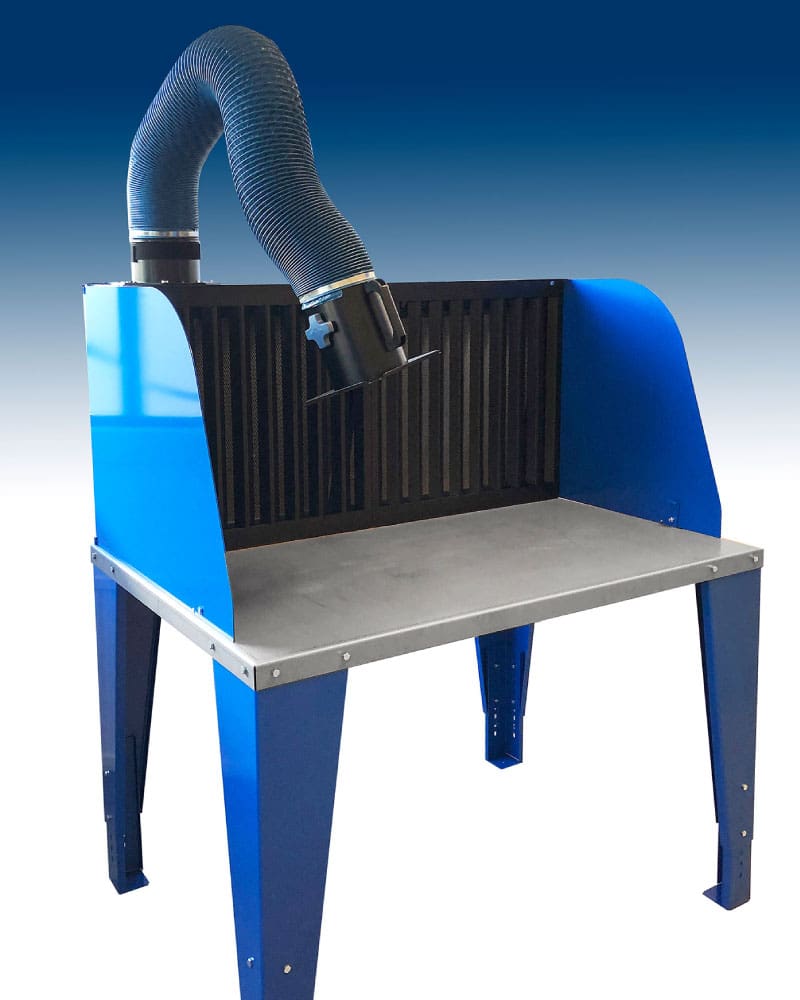

NB. All Maxi-Mesa tables are now manufactured in white/black rather than blue/black as pictured.
